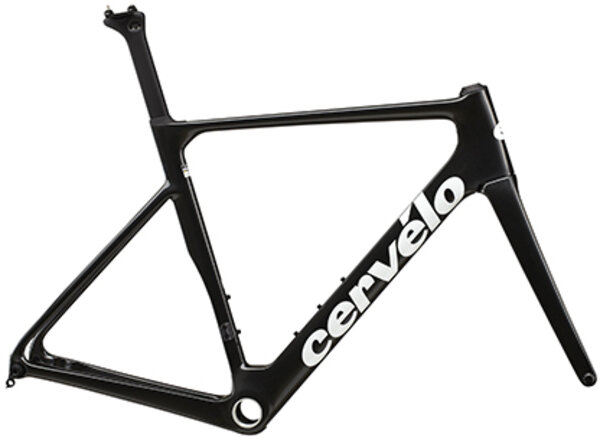

Cervelo Soloist Frameset

Cervelo Soloist Frameset
  • Color: Alpenglow
  • Color: Embers
  • Color: Gold Dust
This item is currently not available.

Details

The Soloist. It's a name from deep in our history, but immediately familiar to anyone with bike racing memories extending back to the early-2000s. It was the weapon of choice for top World Tour contenders on CSC and the Cervelo Test Team, and we're bringing it back for a new generation. The new Soloist is designed for the week-in, week-out rider and racer who can only justify one high-performance bike. It balances light weight and aerodynamic advantages to deliver a bike that really is 'just right'. Soloist comes in a hair lighter than S5, but significantly more aerodynamic than R5, and borrows the threaded bottom bracket standard you find on the R5-CX. It's a race bike that can accommodate mechanical and electronic shifting, can hammer out the training miles in all weather, and yet still has the chops to leap off the front at that decisive moment. That's the Soloist.

Geometry Chart:
Frame Size485154565861
Reach | mm 363 374 383 392 401 410
Stack | mm 491 515 540 565 590 615
Head Tube Angle 71° 72° 73° 73° 73° 73°
Front Center | mm 574 576 578 595 611 628
Bottom Bracket Drop | mm 74.5 74.5 72 72 69.5 69.5
Head Tube Length | mm 86 106 130 156 184 211
Top Tube Length | mm 516 532 548 565 581 598
Seat Tube Angle 73° 73° 73° 73° 73° 73°
Standover Height | mm 708 748 774 798 824 848
Trail | mm 57.3 57.3 57.3 57.3 57.3 57.3
Wheel Size 700c 700c 700c 700c 700c 700c
Fork Offset | mm 57.5 51.5 45.5 45.5 45.5 45.5
Wheelbase | mm 972 974 977 994 1011 1028
Chainstay Length | mm 410 410 410 410 410 410

Specs

Frame Cervélo All-Carbon, Tapered Soloist Fork
Axles Cervelo Aero Thru-Axles, 12x100/142
Headset FSA IS2 1-1/4 x 1-1/2

* Subject to change without notice.

Part Numbers

Option UPC MPN
Alpenglow / 48cm 042677626565 0I0STAFS3X48
Alpenglow / 51cm 042677626572 0I0STAFS3X51
Alpenglow / 54cm 042677626589 0I0STAFS3X54
Alpenglow / 56cm 042677626596 0I0STAFS3X56
Alpenglow / 58cm 042677626602 0I0STAFS3X58
Alpenglow / 61cm 042677626619 0I0STAFS3X61
Embers / 48cm 042677626442 0I0STAFS1X48
Embers / 51cm 042677626459 0I0STAFS1X51
Embers / 54cm 042677626466 0I0STAFS1X54
Embers / 56cm 042677626473 0I0STAFS1X56
Embers / 58cm 042677626480 0I0STAFS1X58
Embers / 61cm 042677626497 0I0STAFS1X61
Gold Dust / 48cm 042677626503 0I0STAFS2X48
Gold Dust / 51cm 042677626510 0I0STAFS2X51
Gold Dust / 54cm 042677626527 0I0STAFS2X54
Gold Dust / 56cm 042677626534 0I0STAFS2X56
Gold Dust / 58cm 042677626541 0I0STAFS2X58
Gold Dust / 61cm 042677626558 0I0STAFS2X61
