BORN TO RACE, NO DISCUSSION.
Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.
Innovation
- CARBON T600 UD
- ASYMMETRIC FRAME PINARELLO F
- ONDA FORK
- COMPETITION GEOMETRY
CARBON T600 UD
A comfort-optimized carbon fiber structure with an unidirectional finish that absorbs all road vibrations for a pleasurable and comfortable ride.
ASYMMETRIC FRAME PINARELLO F
For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
ONDA FORK
A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

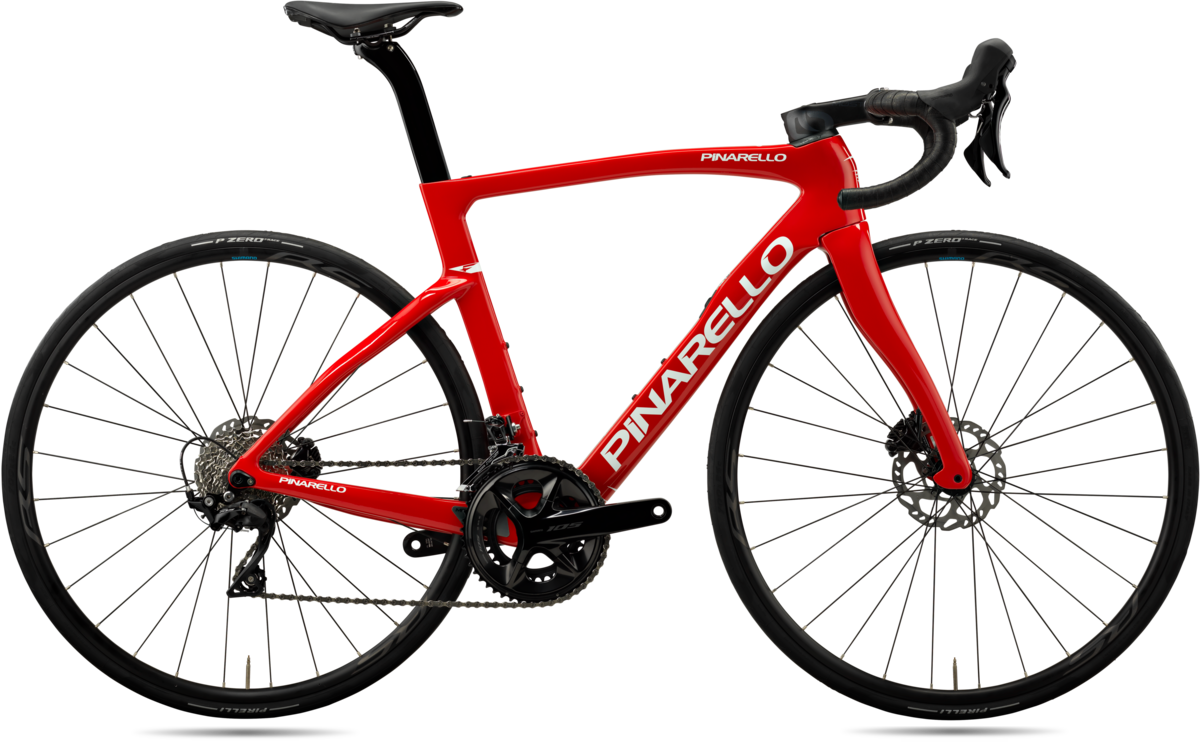

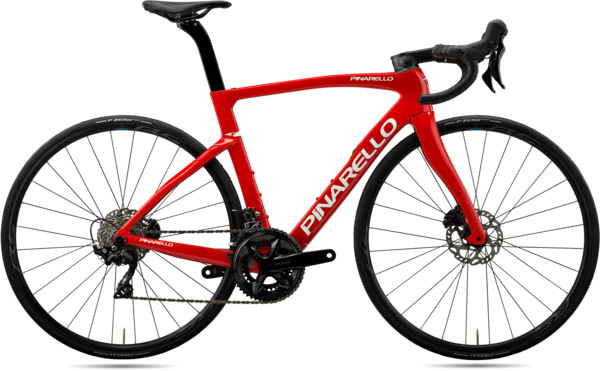

* groupset on the picture might differ from bike specification

CE | 425 | 450 | 465 | 485 | 500 | 515 | 525 | 560 | 580 |
---|---|---|---|---|---|---|---|---|---|
CC | 430 | 465 | 500 | 515 | 530 | 545 | 560 | 575 | 595 |
L | 500 | 515 | 525 | 535 | 545 | 555 | 565 | 578 | 600 |
A [°] | 74.4 | 74.4 | 74 | 73.7 | 73.7 | 73.4 | 73 | 73 | 72.4 |
B [°] | 69.5 | 70.5 | 71.4 | 72 | 72.5 | 72.8 | 73.2 | 73.7 | 73.4 |
P | 406 | 406 | 408 | 408 | 408 | 410 | 410 | 410 | 410 |
T | 97 | 104 | 109 | 114 | 123 | 138 | 149.5 | 178 | 220 |
D | 67 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 67 |
R | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
G | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 |
Reach | 351.3 | 365.2 | 372.1 | 378.1 | 385.6 | 388.3 | 390.8 | 395.4 | 400.3 |
Stack | 502.5 | 517.7 | 525.5 | 532.3 | 542.6 | 557.9 | 570.3 | 599.3 | 633.5 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
Specs
Frame | TorayCa T600 UD, TiCR™ cable routing, Italian BB |
---|---|
Fork | F Onda Fork with ForkFlap™, Tapered head tube |
Wheels | Shimano WH RS-171 |
Axles | MOST Ultralight Custom Axle 12x100 & 12x142, Tool-free removal |
Tires | Pirelli P7 Sport 28-622 |
Bottom Bracket | Shimano 105 |
Crankset | Shimano 105 2x12 DB |
Shifters | Shimano 105 Di2 12S |
Front Derailleur | Shimano 105 2x12 DB |
Rear Derailleur | Shimano 105 2x12 DB |
Brakes | Shimano 105 2x12 DB |
Handlebars | Jaguar XA Aero TiCR |
Tape/Grips | MOST Ultragrip Evo 3mm - Black |
Stem | Tiger Alu Ticr |
Seatpost | Pinarello Aero Seatpost |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Formula Blue / 43cm / 700c | D1997120149-00001 | |
Formula Blue / 46.5cm / 700c | D1997120149-00002 | |
Formula Blue / 50cm / 700c | D1997120149-00003 | |
Formula Blue / 51.5cm / 700c | D1997120149-00004 | |
Formula Blue / 53cm / 700c | D1997120149-00005 | |
Formula Blue / 54.5cm / 700c | D1997120149-00006 | |
Formula Blue / 56cm / 700c | D1997120149-00007 | |
Formula Blue / 57.5cm / 700c | D1997120149-00008 | |
Formula Blue / 59.5cm / 700c | D1997120149-00009 | |
Formula Red / 43cm / 700c | D1997120149-00010 | |
Formula Red / 46.5cm / 700c | D1997120149-00011 | 210000064002 |
Formula Red / 50cm / 700c | D1997120149-00012 | 210000064004 |
Formula Red / 51.5cm / 700c | D1997120149-00013 | 210000064006 |
Formula Red / 53cm / 700c | D1997120149-00014 | |
Formula Red / 54.5cm / 700c | D1997120149-00015 | |
Formula Red / 56cm / 700c | D1997120149-00016 | |
Formula Red / 57.5cm / 700c | D1997120149-00017 | |
Formula Red / 59.5cm / 700c | D1997120149-00018 |
