BMC Trackmachine AL ONE

BMC Trackmachine AL ONE
$2,299.00
Color: Black/Red
Size: Select size
Please select options Unavailable

Details

Our aluminum Trackmachine AL ONE is a complete track bike for all reasons. Tough enough to endure daily training sessions and refined enough for serious competition, it was born for the boards. Its Premium Aluminum frame benefits from Vmax Aero Design, and the Carbon fork features subA Aero technology. It comes with a Carbon Airfoil seatpost, aluminum cockpit, MICHE Pista drivetrain, and DT Swiss wheelset. Just add pedals for addictive excitement.

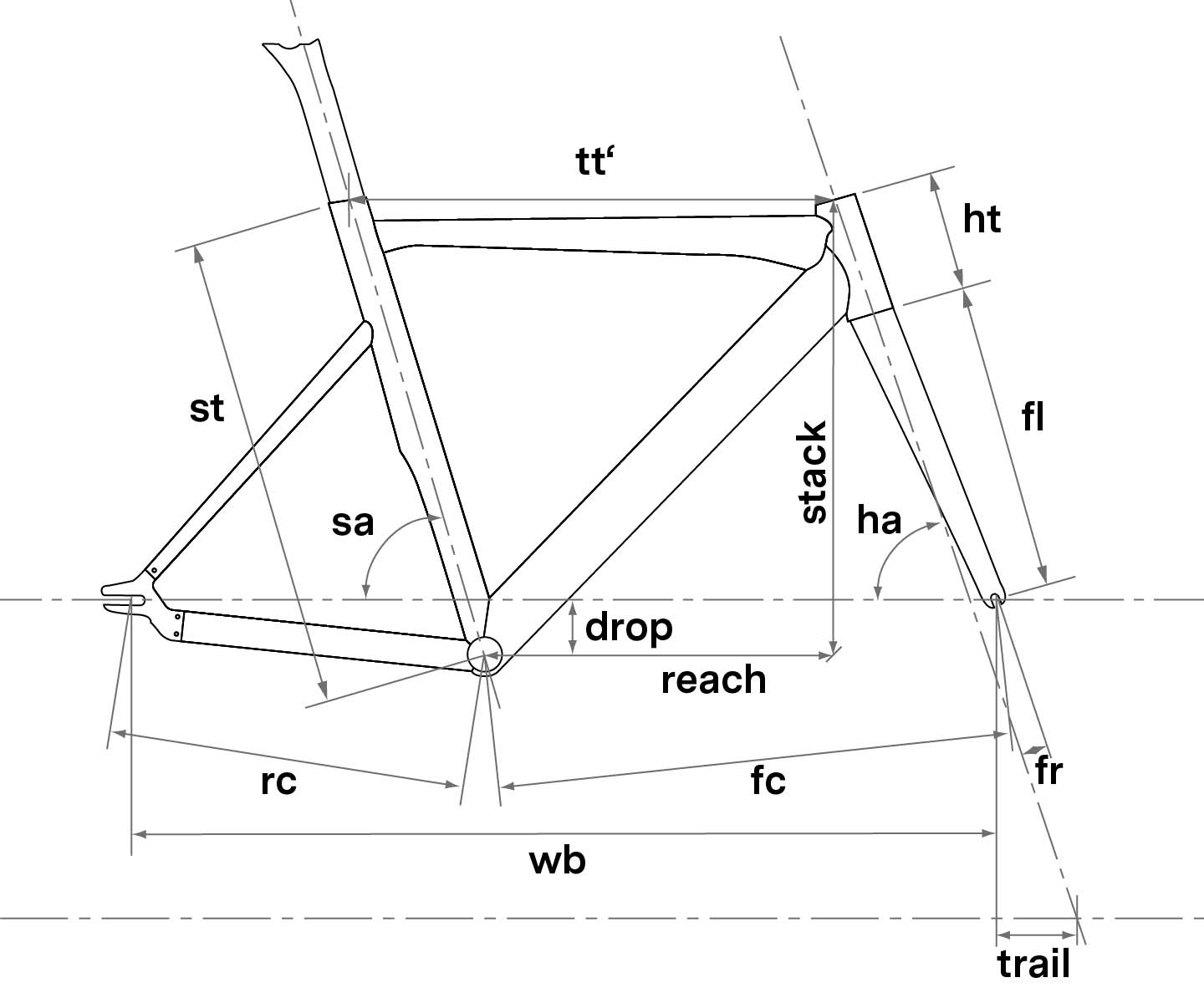

Geometry

Geometry Chart:
SizeSmallMediumLarge
Rider Height CM <173 170-185 >183
Stack MM 490 525 563
Reach MM (reach) 395 402 413
Seat Tube MM (st) 520 550 585
Top Tube MM (tt) 540 558 580
Head Tube MM (ht) 110 138 178
Seat Tube Angle (sa) 73.5 73.5 73.5
Head Angle (ha) 73 73 73
Rear Center MM (rc) 390-420 390-420 390-420
Front Center MM (fc) 577 592 616
Wheelbase MM (wb) 956 975 999
BB Drop MM (drop) 50 58 58
Fork Length MM (fl) 364 364 364
Fork Rake MM (fr) 43 43 43
Trail MM (trail) 58 58 58
Crank Length MM 165 170 170
Stem Length MM 100 110 120
Stem Angle ±6 ±6 ±6
Bar Width MM 400 400 420
Bar Drop MM 125 125 125
Bar Reach MM 70 70 70
Post Offset MM 15 15 15

Specs

Frame Trackmachine AL Premium Aluminum with Vmax Aero Design
Fork Trackmachine Carbon subA Aero Technology
Rims DT Swiss
Hubs DT Swiss
Tires Continental Grand Sport Race SL - 23mm
Chainrings MICHE Advanced Pista 48T
Cassette/Freewheel MICHE Pista Steel 15T
Chain MICHE Pista 1/8"
Handlebars BMC RAB 03 - Ergo Top Shape - Compact Bend
Stem BMC RSM 03
Seatpost Trackmachine Carbon Airfoil Seatpost
Saddle Velo

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black/Red / Small 07630027886375 30002589 210000060603
Black/Red / Medium 07630027886368 30002590 210000060604
Black/Red / Large 07630027886351 30002591 210000060605
